Stock Code：002449
Back

Ceramic PCB 3535 Series

Ceramic PCB power LED

FEATURES:


?Ceramic PCB encapsulation，low thermal resistance.
? Ultra bright with a high luminous efficiency of over 140lm/w.
? Rated power：1-2W



RATED POWER:1-2W

Parameter Symbol Rating
Forward Current IF 1000mA
Pulse Forwards Current*2
 IFP 1500mA
Reverse Voltage
 VR
 5V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color Temp（K） CRI Ra Min
I F( mA)
TEST
Φv（l m）
Typ.
VF( V)
Typ.
I R( μA)
Max*1
Natural white FP-3535CW-BCP-S 5600-6500 70 350 135 3. 0
 10
Neutral white
 FP-3535NW-BCP-S 3700-4200 70 350 125 3. 0
 10
Warm white
 FP-3535WW-BCP-SR80
 2800-3200
 80
 350
 115 3. 0
 10

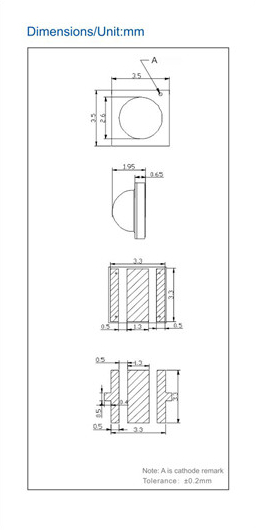

DIMENSIONS/UNIT(mm):
