Infrared 3535 Series

Ceramic substrate

FEATURES:


?Ceramic substrate，stable performance，high reliability.
?Application of infrared photography and security system，with a wavelength of 850nm,940nm.
? Rated power：0.5-2w.


ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Part number Color Temp（K） I F( mA)
TEST
 Radiation Power（mW）
( mW)
 I R( μA)
Max*1
FP-3535I R-BS-SBC 850 350 204 1.5
FP-3535I R-BS-SCC 850 350 220 1.5

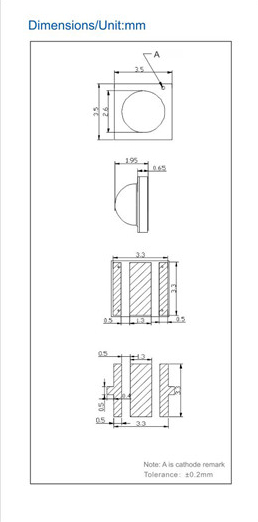

DIMENSIONS/UNIT(mm):
