? 15V drive，low current，high power conversion efficiency

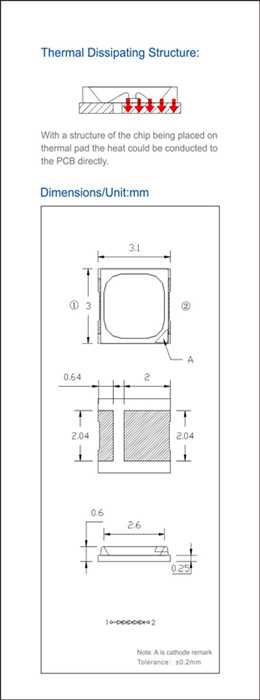

? Thin encapsulation with heat sink，efficient heat dissipation
? Applicable to LED bulb，downlights，module etc. cost-effective
? Rated power：1W
| Parameter | Symbol | Rating |
| Forward Current | IF | 75mA |
|
Pulse Forwards Current*2 |
IFP | 200mA |
|
Reverse Voltage |
VR |
25V |
|
Working Temperature |
TOPR |
-30~+85℃ |
|
Storage Temperature |
TSTG |
-40~+100℃ |
| Color | Part number | Color Temp（K） | CRI Ra Min |
I F( mA) TEST |
Φv（l m） Typ. |
VF( V) Typ. |
| Natural white | FM-VP3030WNS-460Q-R80 | 5600-6500 | 80 | 60 | 105 | 16.0 |
|
Neutral white |
FM-VP3030WDS-460Q-R80 | 3700-4200 | 80 | 60 | 105 | 16.0 |
|
Warm white |
FM-VP3030WLS-460Q-R80 |
2800-3200 |
80 |
60 |
100 |
16.0 |
