Stock Code:002449
Back

IMD-F15F

FEATURES

①Integrated Matrix Device (IMD) solution, pixel pitch 1.56, flip chip technology, energy saving, more amazing image display.

②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

③High precision cutting technology, solve the problems of warping and mixed light in display, achieve to the seamless combination.

④High brightness, high contrast, no modular color difference in whole screen, 100% tested and binning, better color consistency.

PRODUCT PARAMETERS

Product Name

Color IF(mA)
TEST
λd(nm)
Typ
Iv(mcd)
Typ
Vf(V)
Typ
View angle
(deg.)

IMD-F15F
2.82×2.82×0.85

5 620 50 1.9 120
2 530 54 2.5 120
2 4708 2.6 120

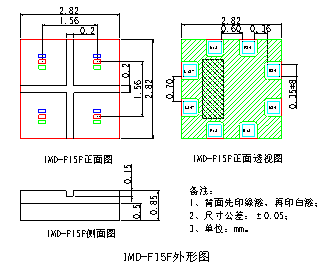

DIMENSIONS/UNIT(mm)
