Stock Code：002449
Back

RS-2727MWAS

Outdoor high density display,high brightness and contrast,apply to P5-P8

FEATURES

①M(fèi)att surface, ultra high contrast;

②10000nits level brightness, lower power consumption and screen temperature, longer lifetime;

③High luminous surface and low PINs height, convenient for glue filling and mask installation.

PRODUCT PARAMETERS

Product Name

Color IF(mA)
TEST 		λd(nm)
Typ 		Iv(mcd)
Typ 		Vf(V)
Typ 		View angle
(deg.)

RS-2727MWAS
2.8×2.7×2.45

 20 622 1048 2.0 110
15 528 1826 2.8 110
10 474 261 2.8 110

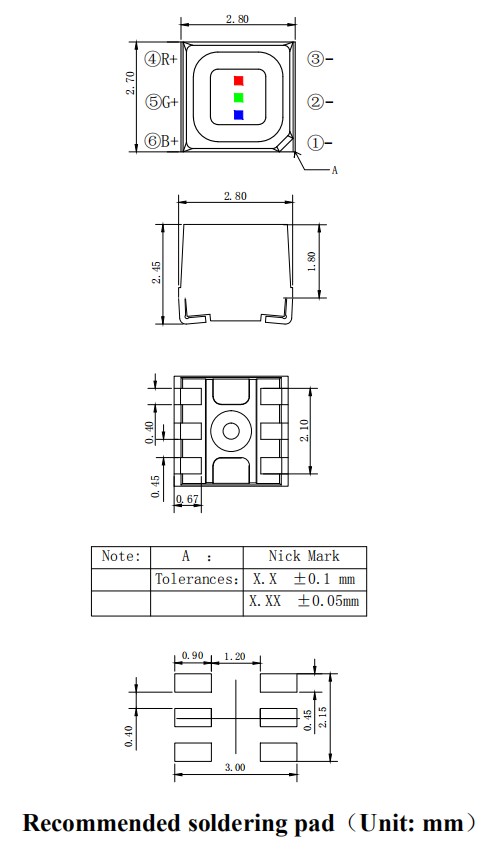

DIMENSIONS/UNIT（mm）
